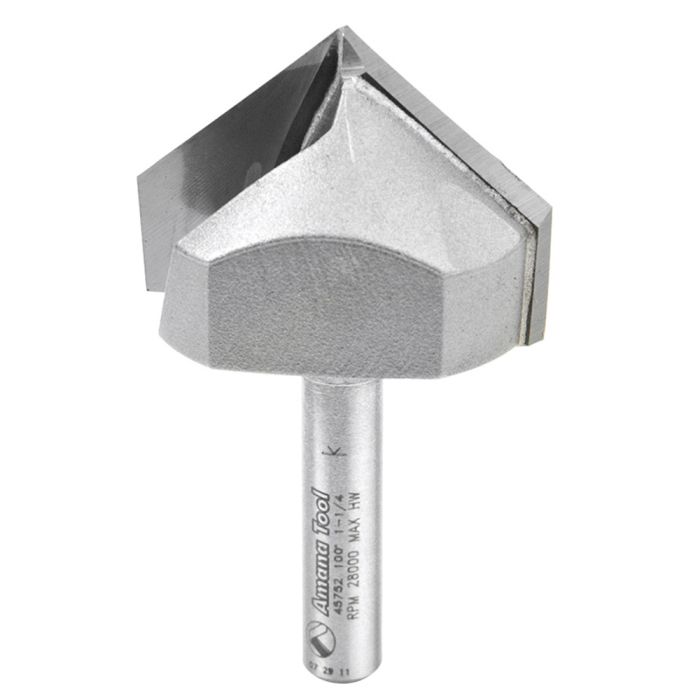

Amana Tool 45752 1-1/4" Carbide Tipped V Groove Router Bit
Ships direct from manufacturer
Cut decorative v-grooves and lettering on signs with these v-groove bits. Use with an edge guide to chamfer and bevel edges.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868575752 |
|---|
| Flutes | 2 |
|---|
| Material | Carbide Tip |
|---|
| Type | Router Bit |
|---|
| Angle (a°) | 100 Deg |
|---|
| Diameter (D) | 1 1/4" |
|---|
| Cutting Height (B) | 17/32" |
|---|
| Cutting Height (B1) | 53/64" |
|---|
| Shank Diameter (d) | 1/4" |
|---|
| Overall Length (L) | 2 3/32" |
|---|
| Style | V-Groove |
|---|
| Maximum Speed (RPM) | 28,000 RPM |
|---|
| IPM* / Chip Load Per Tooth (Hardwood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Softwood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Plastic) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (Plywood) | 90" / 0.0024" |
|---|
| IPM* / Chip Load Per Tooth (MDF) | 180" / 0.0048" |
|---|
| Suitable for Use with | Handheld, Table-Mounted and CNC Routers |
|---|
| Application | For Cutting 20lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board |
|---|
