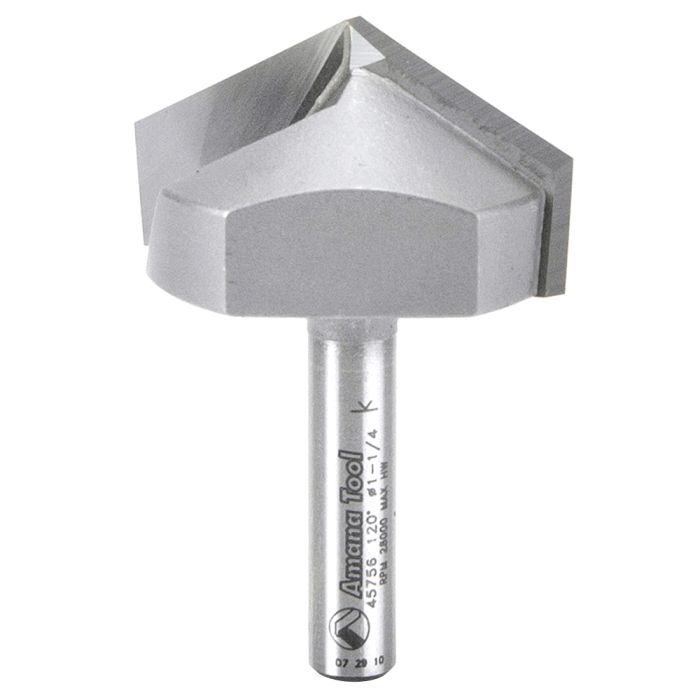

Amana Tool 45756 1-1/4" Carbide Tipped V-Groove Router Bit
SKU
45756
$108.86
Ships direct from manufacturer?
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868575756 |
| Application | 20lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board |
| Type | Router Bit |
| Angle(a°) | 120 Deg |
| B1 | 23/64" |
| Ball Bearing | No |
| Cutter Height(B) | 21/32" |
| Cutting Depth | 23/64" |
| Cutting Diameter(D) | 1 1/4" |
| Diameter(D) | 1 1/4" |
| Flutes | 2 |
| Length(L) | 1 59/64" |
| Material | Carbide Tip |
| Overall Length(L) | 1 59/64" |
| Shank | 1/4" |
| Shank(d) | 1/4" |
| Tool No. | 45756 |
| Diameter(D) | 1-1/4" |
|---|---|
| Cutting Height (B) | 23/64" |
| Overall Length(L) | 1-59/64" |
| Shank(d) | 1/4" |
| Flutes | 2 |
| Max. RPM | 28,000 RPM |
| Style | V-Groove |
| Cutting Height (B1) | 21/32" |
| Angle(a°) | 120 Deg |
