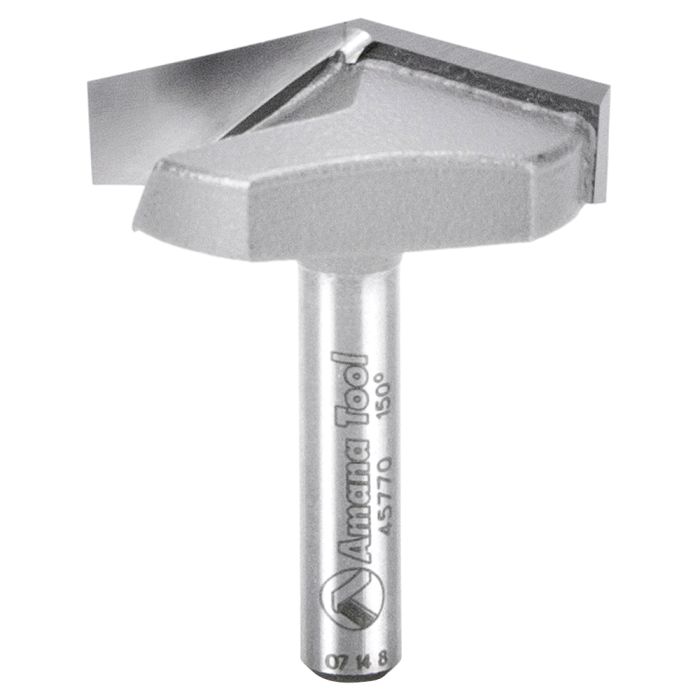

Amana Tool 45770 1-1/4" Carbide Tipped V-Groove Router Bit

SKU

45770

$99.56

Ships direct from manufacturer

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges.

WARNING: Proposition 65 Warning for California Residents View Details

Application	20lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board
Suitable for Use with	Can be Used with Handheld, Table-Mounted and CNC Routers
Type	Router Bit
Material	Carbide Tipped
Style	V-Groove
Feed Rate IPM* / Chip Load Per Tooth (Hardwood / Softwood / Plastic / Plywood)	90" / 0.0024"
Feed Rate IPM* / Chip Load Per Tooth (MDF)	180" / 0.0048"
Flutes	2
Angle (a°)	150 Deg
Diameter (D)	1 1/4"
Cutting Height (B)	11/64"
Cutting Height (B1)	7/16"
Shank Diameter (d)	1/4"
Overall Length (L)	1 11/16"
