Amana Tool RC-1104 2-1/32" Carbide CNC Insert V-Groove Router Bit
SKU
RC-1104
$226.95
Ships direct from manufacturer ?

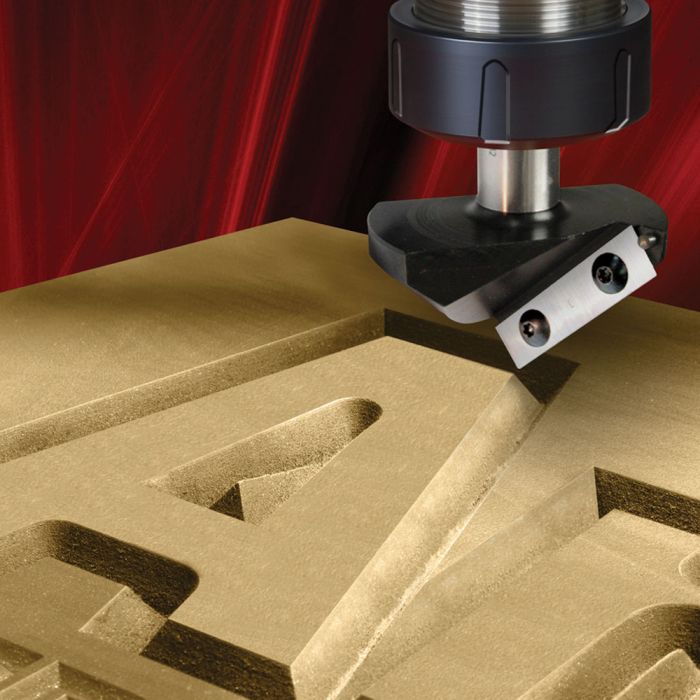

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Signmaking and lettering
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868501104 |
| Features |
|
| Includes |
|
| Application | Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber, (Engraving Only), Acrylic/Plastic, Composites, Composite Decking, Epoxy (Epoxy Resins), Foam, High Density Polyethylene (HDPE), Laminate, Melamine, MDF/HDF, PVC, Sign Board, Solid Surface, Vene |
| General Purpose Knives | RCK-136 |
| MDF Knives | RCK-353 |
| Type | Router Bit |
| Angle(a°) | 120 Deg |
| Angle(a°1) | 60 Deg |
| B1 | 1 5/32" |
| Cutter Height(B) | 9/16" |
| Cutting Diameter(D) | 2 1/32" |
| Diameter(D) | 2 1/32" |
| Feed Rate IPM | 360 IPM |
| Length(L) | 3 1/16" |
| Material | Carbide Tip |
| Max. RPM | 18,000 RPM |
| # of knives | 2 |
| Overall Length(L) | 2" |
| Screw # | 67139 |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | RC-1104 |
| Diameter(D) | 2-1/32" |
|---|---|
| Cutting Height (B) | 9/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 3-1/16" |
| Angle(a°) | 120 Deg |
| Cutting Edges | 1 |
| Flutes | 2 |
| # of knives | 2 |
| Angle(a°1) | 60 Deg |
| Cutting Height (B1) | 1-5/32" |
| Length(L1) | 2" |
| Max. RPM | 18,000 RPM |
| Style | Insert V-Groove |
