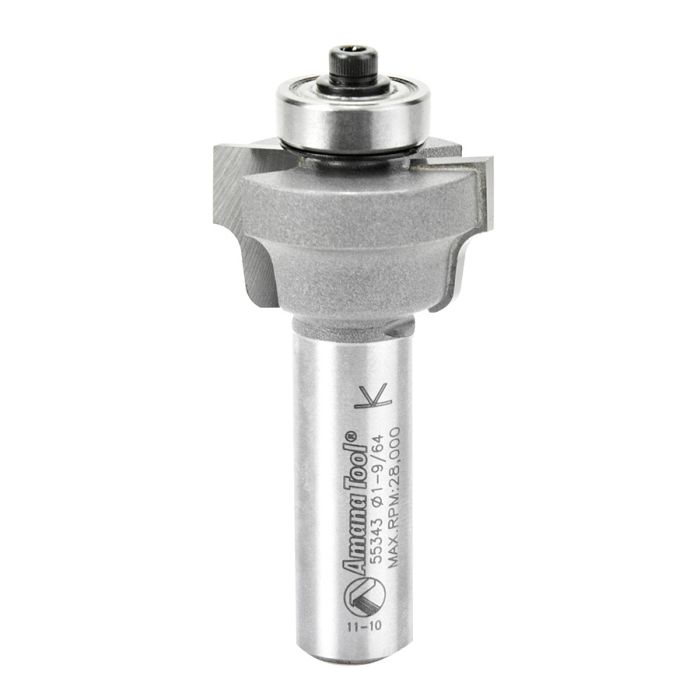

Amana Tool 55343 1-9/64" x 2-1/8" Carbide Tipped Ogee Window Sash & Rail Router Bit with Bottom Ball Bearing
SKU
55343
$96.06
Ships direct from manufacturer ?
This assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8 inch and 1-3/4 inch thick. Assembly includes an ogee profile cutter, one bearing, a 1/2 inch shank arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile on all parts. Use in a table-mounted router.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868555343 |
| Type | Router Bit |
| B1 | 5/16" |
| Ball Bearing | Center |
| Cutter Height(B) | 43/64" |
| Cutting Diameter(D) | 1 9/64" |
| Diameter(D) | 1 9/64" |
| Length(L) | 2 1/8" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/8" |
| Radius | 1/8" |
| Radius(R) | 1/8" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 55343 |
| Suitable for Use With | Table Mounted Router |
| Diameter(D) | 1-9/64" |
|---|---|
| Cutter Height(B) | 43/64" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-1/8" |
| Radius(R) | 1/8" |
| Cutter Height(B1) | 5/16" |
| Max. RPM | 28,000 RPM |
