Makita XPS01PTJ 6 1/2" 18V X2 LXT Lithium‑Ion Cordless Plunge Circular Saw Kit, 5.0 Ah Battery

Product Description

The Makita 36V (18V X2) LXT brushless 6 1/2" plunge circular saw Kit (XPS01PTJ) delivers precise and more accurate cutting when combined with an optional guide rail system. The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT batteries with Automatic Speed Change Technology, which adjusts cutting speed and torque during the cut for optimum performance. The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2 3/16" cutting capacity at 90 degrees, with a bevel capability of -1 degree to 48 degree and positive stops at 22.5 degree and 45 degree. When used with a rail system the plunge circular saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop. The kit includes two 18V LXT 5.0Ah batteries, and each reach a full charge in only 45 minutes on the efficient rapid optimum charger – the fastest charge-time in the category – for less downtime and increased productivity. For added convenience, the batteries feature an integrated LED battery charge level indicator. It’s part of Makita’s expanding 18V lithium-ion system, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V lithium-ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the star protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT and compact lithium-ion batteries with the star symbol on the battery indicating star protection inside.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Makita
Condition	New
UPC	088381851190
Features	Powered by two LXT batteries; X2 LXT technology delivers more power, speed and run time without the hassles of a cord Makita built electronically controlled BL brushless motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge X2 LXT technology delivers up to 125 cuts per charge in 4x8 sheets of 1/2" plywood per charge using two 5.0Ah batteries Close to the wall cutting (11/16") for expanded cutting applications Electronic speed control maintains constant speed under load for smooth cutting Easy-to-set depth adjustment with large scale Smooth and convenient plunge release lever for operator comfort Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts On-board hex wrench for fast and easy blade changes Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation Built-in depth stop allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting Rubberized soft grip handle provides increased comfort on the job Large 1 7/16" rear dust port directs material away from the operator and easily connects to a vacuum system Includes a premium 55 tooth ultra thin kerf carbide tipped saw blade (B-57071) ideal for cordless circular saws offering up to 66% more cuts per charge compared to our standard corded plunge saw blade (B-07353) Optional guide rail system interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting Slide lever on saw base designed to engage the optional guide rail when bevel cutting for stability Electric brake for maximum productivity Compact and ergonomic design at 13 5/8" long; weighs only 11.2 lbs. with batteries (batteries not included) for reduced operator fatigue Precise straight and 45 degree bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail 3-stage LED gauges indicate battery charge levels Dual port rapid optimum charger charges two batteries at the same time The dual port rapid optimum charger communicates with the batteries built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature For more efficient charging, the dual port rapid optimum charger has built-in fans to cool the batteries faster Two 18V LXT lithium-ion batteries deliver the power and performance of a corded plunge circular saw without leaving the 18V LXT platform- Makita SP6000J Only use genuine Makita batteries and chargers Optional Accessories: Guide rail:118" (194367-7), 55" (194368-5), Clamp set (194385-5), Rip fence (165447-6) Saw works with other competitive guide rails

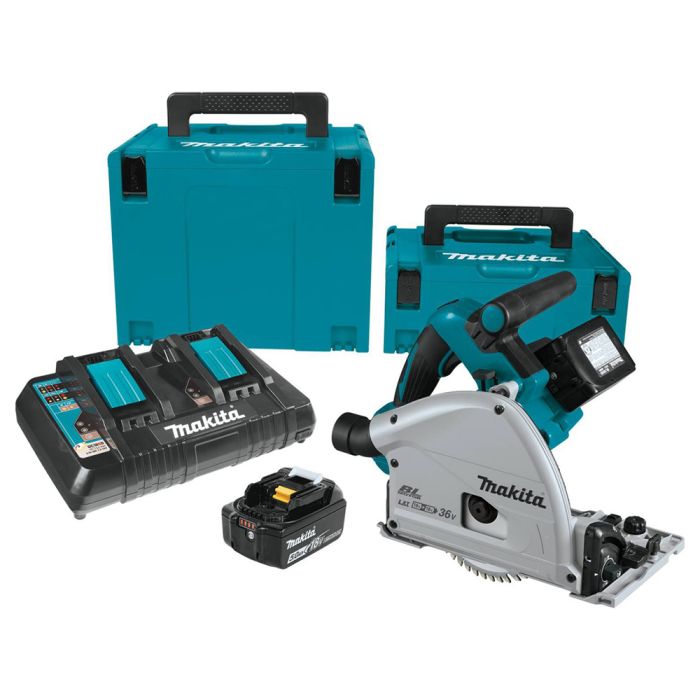

Includes	18V X2 LXT (36V) Brushless 6 1/2" Plunge Circular Saw (XPS01Z) 6 1/2" 55T C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam. (B-57071) MAKPAC Interlocking Case, X-Large (197213-3) 2 x 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B) Hex Wrench (783203-8) MAKPAC Interlocking Case, Medium (197211-7) 18V LXT Lithium-Ion Dual Port Charger (DC18RD)
PDFs	XPS01PTJ_SpecSheet.pdf XPS01PTJ_InstructionManual.pdf
Video
Application	Cutting Large Wood Panels, Other Wood Materials Including Melamine and MDF, Aluminum, and Corian with Optional, Material Specific Blades
Battery Type	Lithium-Ion
Blade Diameter	6 1/2"
Warranty	3 Years

Type	Plunge Circular Saw Kit
Voltage	36 V (18 V x 2)
Motor Type	Brushless
Cordless or Corded	Cordless
Cordless System	LXT X2
Variable Speed	Yes
Electric Brake	Yes
Weight (with Battery)	11.2 lbs
Speed (RPM)	2,500 to 6, 300 RPM
Speed Settings	5
Arbor Size	13/16"
Overall Length	13 5/8"
Maximum Cutting Capacity (90 Degree)	2 3/16"
Maximum Cutting Capacity (45 Degree)	1 9/16"

18V LXT Lithium-Ion 5.0Ah Battery (BL1850B)

Battery Amp Hour	5.0 Ah
Battery Charge Time	45 mintues

18V LXT Lithium-Ion Dual Port Charger (DC18RD)

Cord Length (ft)	4.5'
Clamshell/Jam Pot	Clamshell
