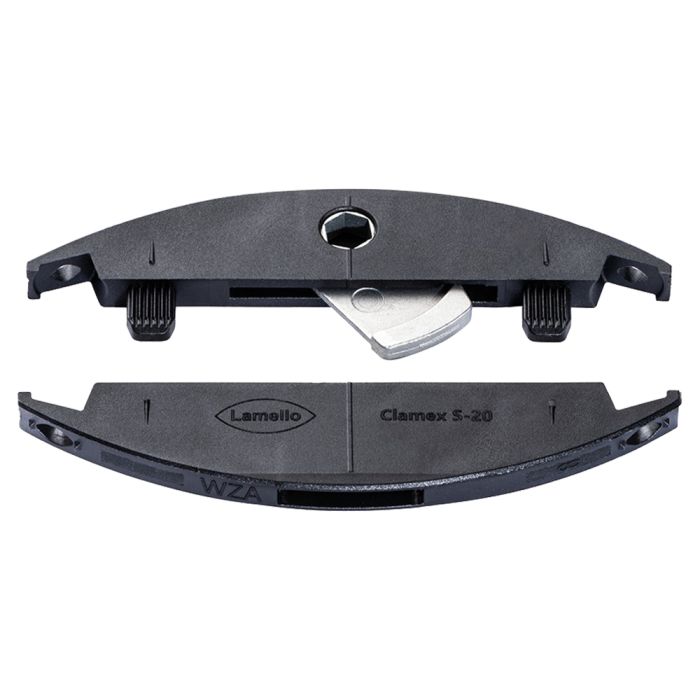

Lamello 145244 Clamex S-20 12mm Detachable Connectors, 80 Pair

SKU
145244
$170.00
In Stock

Clamex S-20 is a detachable connector for the Lamello system for material thicknesses from 16 mm and is fastened in the groove with screws. The symmetric 4 mm grooves can be created with any biscuit joiner. Clamex S-20 is connected to the counterpart with a lever and has a lateral installation tolerance. It requires no adhesive, enables aesthetic connections at all angles and is ideal for fixed or detachable connections.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLamello
ConditionNew
UPC07640348848198
Features
  • Open the connection time and time again with the rotating lever
  • Use with any biscuit joiner
  • Narrow connector allows installation into the edge in materials from 8 mm
  • Versatile: A cutting principle for many different joining elements
  • Very Aesthetic: Only a small, barely visible tool opening of 6mm is used to open and close the connector
Includes
  • 80 Clamex S-20 Connectors
  • 320 Screws
  • 1 alignment jig
Type Connector
Size (mm) 59 mm × 12 mm × 3.9 mm
Cutter 100 mm × 4 mm × 22 mm
Material Connector Fiberglass Reinforced Plastic
Material Lever Zinc Die Cast
Installation Tolerance Long. ± 1 mm/radial ± 0 mm
Tensile strength (N) MDF 620 N
Tensile strength (N) Particle board 490 N
Tensile strength (N) Beech 620 N
Package Size 80 Pair
Application Particle Board, MDF, Plywood, Solid Wood, Compact Laminate, Etc.
