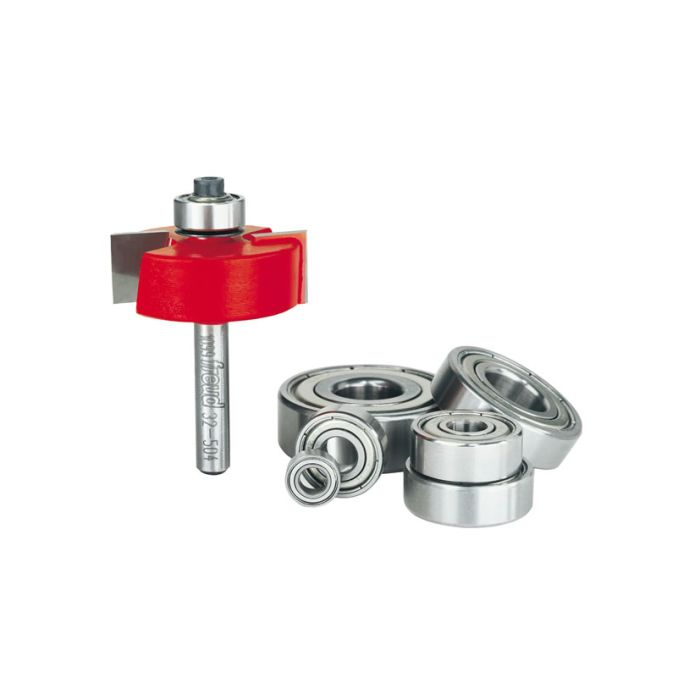

Freud 32-504 Rabbeting Router Bit Set, 1-3/8 x 2-1/4, Carbide

SKU
32-504
$55.40
Ships direct from manufacturer?
Freud Rabbeting Sets make versatile Rabbeting bits even more useful in the shop by offering a wide range of different depths of cut. With interchangeable bearings to cut rabbets of different depths, these sets provide a fast, easy way to adjust the size of the profile. Use them to make strong rabbeted joints, cut recesses to let in the back panels of cabinets, or create an interesting detail on built-up molding. Use in hand-held or table-mounted routers to cut hard or soft wood, plywood or composite material. 32-504, 32-524, and 32-526 can also be used as flush cutting trim bits.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFreud
ConditionNew
UPC00892538508
Features
  • Each set includes interchangeable bearings and a wrench to cut multiple depths with a single bit
  • Great for furniture makers, cabinetmakers and carpenters
  • 32-504, 32-524, and 32-526 can also be used as flush cutting trim bits
  • Cuts all composition materials, plywoods, hardwoods, and softwoods
  • Use on hand-held and table-mounted portable routers
Includes
  • 62-102 - 3/8" Ball Bearing
  • 62-104 - 1/2" Ball Bearing
  • 62-114 - 1-1/8" Ball Bearing
  • 62-311 - Washer
  • 62-313 - Washer
PDFs
ApplicationFor Joining Boards and Letting in Back Panels with Different Depths of Cut
TypeRabbeting
Cutting Diameter(D)1 3/8"
Length(L)2 1/4"
MaterialCarbide Tip
Shank1/4"
Package Size2
WarrantyLimited Lifetime
Diameter(D)1-3/8"
# of Wings2
Overall Length(L)2-1/4"
Shank(d)1/4"
Cutter Height(B)1/2"
Cutting DepthFlush, 1/8",1/4",5/16",3/8",7/16",1/2"
