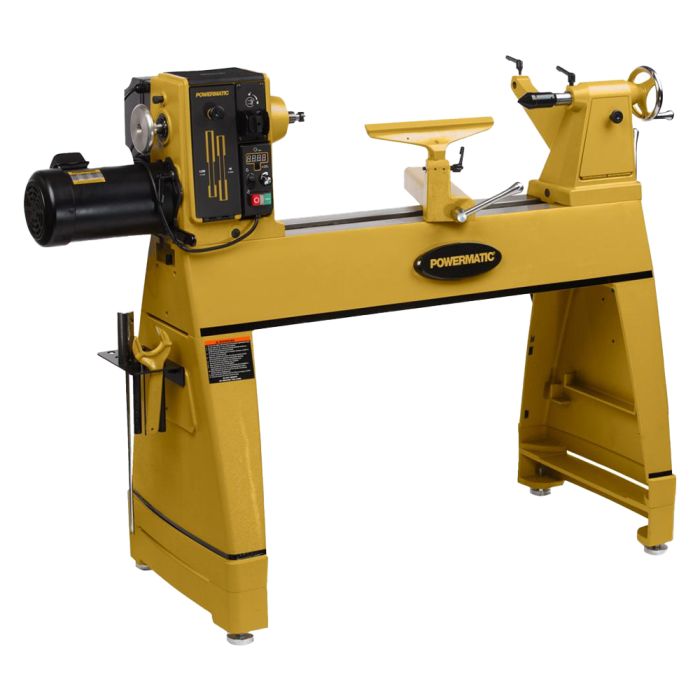

Powermatic 1353001 3520C 220V Woodworking Lathe, 2HP/1Ph

SKU
1353001
$5,299.99
Ships direct from manufacturer?
The Powermatic 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension and a sliding hammer knockout rod with brass tip.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 731325713213
Features
  • Digital indexing readout simplifies the indexing process for added precision
  • Magnetic-backed moveable control box for customizable versatility and safety
  • Adjustable risers blocks for 4 inches of height adjustment,allowing maximum comfort when turning
  • Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Extended spindle nose increased access to the work piece
  • Able to maintain speeds as low as 15 RPM
  • Tailstock incorporates anti-rotation key and Acme threads for smoother operation and increased longevity
  • Self-locating ergonomic spindle lock design for easy, one handed operation
  • Fully enclosed VFD for increased user protection
  • Main power disconnect switch located on rear of headstock
PDFs
Application Woodturning
Horsepower 2 HP
Motor Phase 3 Ph
Size (Inch) 20"
Stationary type Leg Stand
Motor Current6.2 Amps
Motor Voltage230 V
Prewired Voltage230 V
Recommended Circuit Size20 Amps
Wiring Remarks1 Ph
Bed ConstructionCast Iron
Outboard Turning38
Centerline of Spindle to Floor40-5/8 without Risers
Number of Indexing Positions48
Speed Range15-1200, 40-3200
Spindle SpeedsLow 15-1200/High 40-3200
Outboard External Threads (In. x TPI)1 3/16 - 18 UNC
Spindle Threads (In. x TPI)1 1/4" x 8"
Ram Travel Quill Travel4 1/2"
Quill TaperMT-2
Spindle TaperMT-2
Tailstock Bore3/8"
Spindle Bore5/8"
Headstock MovementFull Length of Bed
Distance Between Centers36 with dual bearing center
Swing Over Tool Rest Base15 3/4"
Swing Over Bed20"
Size20"
