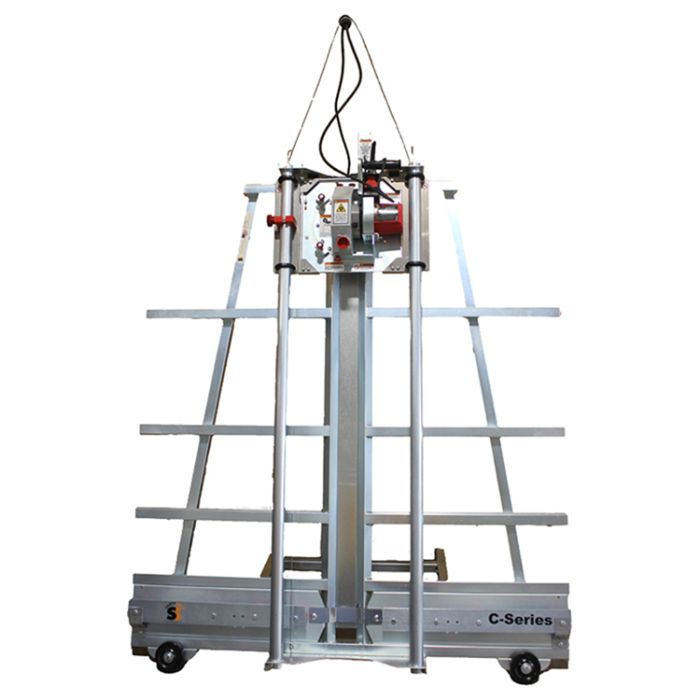

Safety Speed Cut 6480-20C 3-1/4HP Vertical Panel Saw
Ships direct from manufacturer
Wheels and a folding stand provide portability for our compact panel saw and allow us to move it around our shop as we see fit.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Safety Speed Cut |
|---|
| Condition | New |
|---|
| Features |
- A Portable folding stand and wheels allowing for moving the panel saw around our shop as our day-to-day operations change
- General-purpose saw blade
- A Dust bonnet allowing us to set our machine up for collecting dust
- Zinc plated 1 3/4" steel guide tubes
- 4 Nylatron roller bearing systems
- Adjustable vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Thin material pressure guard
- Injection-molded plastic material rollers
- Spring loaded counter balance system
- TUV certified to UL/CSA standards
|
|---|
| Includes |
- Heavily Guarded Saw Blade
- Folding Stand
- Wheels
- 40 Tooth Blade
|
|---|
| Video | |
|---|
| Application | Cabinet Shops, Crate and Boxmaking, Home Hobbyist, Plastic Processors, Sign Makers, Store Fixture Builders |
|---|
| Type |
Panel Saw |
| Weight |
189 lbs |
| Horse Power |
3.25 HP |
| Dimensions |
60" × 11" × 70" |
| Maximum Crosscut |
50" |
| Maximum Rip Cut |
96" |
| Cut Depth |
1 3/4" |
| Cut Accuracy |
1/32" |
| Frame Length |
60" |
| Saw Blade Diameter |
8" |
| Saw Blade Bore Size |
5/8" |
| Daily Usage |
1-3 Hours |
| Rollers |
8 |
| Motor Voltage |
120 V and 220 V |
| Motor Amperage |
15 Amp and 7.5 Amp |
| Motor Manufacturer |
Milwaukee Tool |
| Machine Footprint |
15 sqft |
| Machine Length |
60" |
| Machine Height |
75" |
| Machine Depth |
14" |
| Machine Width with Stand Attached |
36" |
