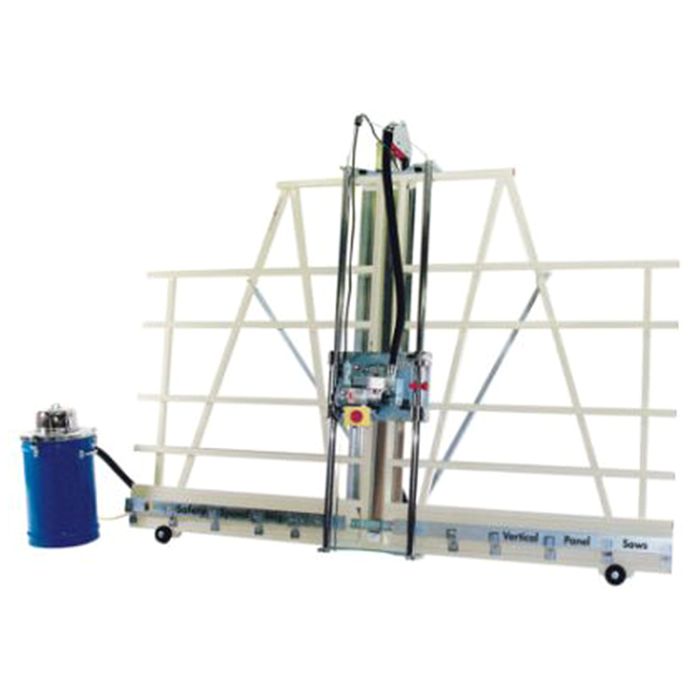

Safety Speed Cut 6800 74" Crosscut Panel Saw
Ships direct from manufacturer
The 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Safety Speed Cut |
|---|
| Condition | New |
|---|
| Features |
- 3 Hp worm driven heavy-duty saw motor
- 10' Welded steel frame
- Chrome-plated 1 3/4″ guide tubes
- 8 Nylatron roller bearing systems
- Adjustable vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Thin material pressure guard
- Solid aluminum material rollers
- Enclosed counterweight system
- Integrated dust collection bonnet
- TUV certified to UL/CSA standards
- An upgraded, worm drive motor providing greater longevity
- 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings
- Additional steel welded at a diagonal plane adding significant weight to the frame
- A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance
- Additional bearings within the motor providing a tighter cutting tolerance
- Aluminum material rollers instead of red material rollers
|
|---|
| Video |
|
|---|
| Horsepower | 3 HP |
|---|
| Weight | 660 lbs |
|---|
| Dimensions | 124" × 17" × 98" |
|---|
| Max. Crosscut | 74" |
|---|
| Max. Rip Cut | Unlimited |
|---|
| Cut Depth | 1 3/4" |
|---|
| Cut Accuracy | 1/64" |
|---|
| Frame Length | 120" |
|---|
| Daily Usage | 3-5 Hours |
|---|
| Rollers | 14 |
|---|
| Saw Blade Diameter | 8" |
|---|
| Voltage | 120V |
|---|
| Amperage | 13 Amp |
|---|
| Type | Panel Saw |
|---|
