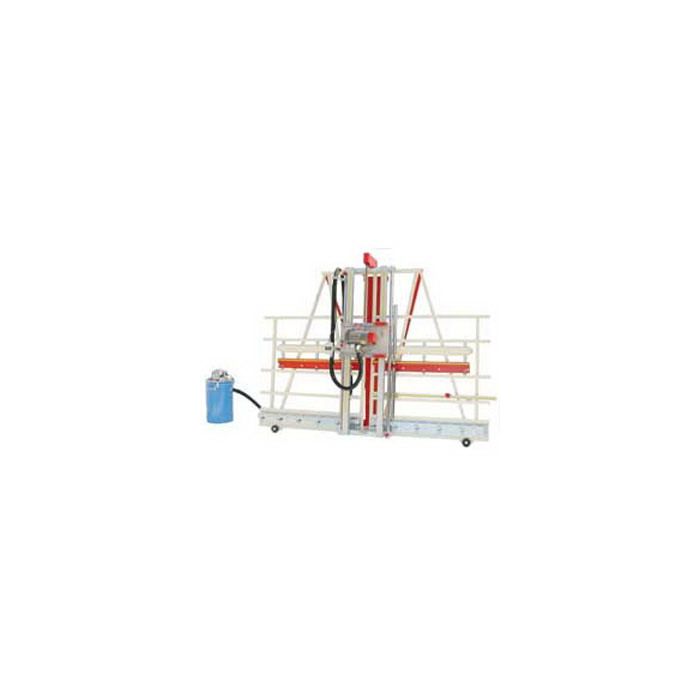

7400XL Panel Saw, 64"Crosscut, 2HP, 1 Phase

SKU
7400XL
$15,199.00
Ships direct from manufacturer?

The 7400 saws are designed for continuous production and tight tolerance cutting. With a 3 horsepower, 3~, 220V heavy-duty induction motor (Also available in 1~), these saws handle the toughest applications. The saw carriage travels vertically on two heavy extruded beams utilizing Dual-Vee bearings to deliver cutting accuracy to 0.005" straight and square. The 7400XL offers an extra large 13' frame length for cutting panels in excess of 10' in length. Specify these machines for heavy production requirements, large panels and close tolerance panel processing applications.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerSafety Speed Cut
ConditionNew
Features
  • 3 Hp, 3 continuous duty induction saw motor
  • Welded steel frame and integrated stand system
  • Low voltage switch protection
  • Adjustable vertical and horizontal rulers
  • Quick stop gauges (8 Feet left, 5 Feet right)
  • Quick change from vertical to horizontal cutting
  • Floating pressure saw foot
  • Solid aluminum material rollers
  • Wheels
  • Enclosed counterweight system
  • Dust collection ready
  • Hold down bar
Horsepower3 HP
Crosscut Cut Capacity64 Inch
Maximum Cut Thickness2 1/8 Inch
Cut Accuracy0.005 Inch
Amperage Rating7.6 Amp Standard, 11 Amp Optional
Voltage Rating3 to 220 V Standard, 1 to 230 V Optional
Number Of Phase1
Blade Size8 Inch Dia
Frame Length120 Inch
