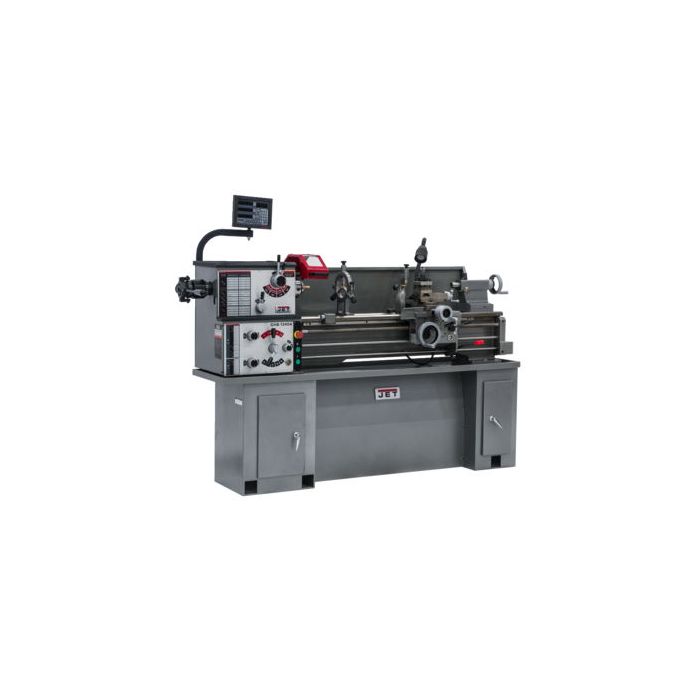

JET 321131 GHB-1340A 230V Lathe with Newall DP700 Dro, 2HP/1Ph
SKU
JT9-321131
$16,213.00
Ships direct from manufacturer?
Usually ships in 24-48 hours
JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Jet |
|---|---|
| Condition | New |
| UPC | 66275551412 |
| Features |
|
| PDFs | |
| Horsepower | 2 HP |
| Motor Phase | 3 Ph |
| Stationary type | Bench - Geared Head |
| Warranty | 2 Year |
| Motor Voltage | 230V |
|---|---|
| Prewired Voltage | 230 V |
| Size | 13" x 40" |
| Digital Readout | Acu-Rite 203 |
| Swing Over Bed | 13" |
| Swing Over Cross Slide | 7 25/32" |
| Swing Through Gap | 18 3/4" |
| Length of Gap | 8" |
| Distance Between Centers | 40" |
| Spindle Bore | 1 3/8" |
| Spindle Mount | D1-4 |
| Number of Spindle Speeds | 8 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 RPM |
| Spindle Taper with Sleeve | MT-7 (MT-3) |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | 0.0018 - 0.0374 IPR |
| Range of Cross Feeds (IPR) | 0.0006 - 0.0130 IPR |
| Number of Inch Threads | 38 |
| Range of Inch Threads (TPI) | 3 1/2 - 80 TPI |
| Number of Metric Threads | 23 |
| Range of Metric Threads | 0.45 - 10 |
| Maximum Tool Size | 5/8" x 5/8" |
| Compound Slide Travel | 2 11/16" |
| Cross Slide Travel | 6 5/16" |
| Carriage Travel | 35" |
| Tailstock Spindle Travel | 3 3/4" |
| Taper in Tailstock Spindle | MT-3 |
| Follow Rest Capacity | 2 3/8" |
| Steady Rest Capacity | 2 3/4" |
| Width of Bed | 7 3/8" |
| Drive | Geared Head |
| Accessory 1 | Taper Attachment |
| Length | 79" |
| Width | 28 1/2" |
| Height | 30" |
